GE Zenith ATS - Replacement Parts
Now ABB
ABB has discontinued most of the replacement parts for the old GE Zenith automatic transfer switches. Therefore we have removed the parts lookup search box. The table below lists some parts that are still available as of January 2026.
|
Item |
Image (click to enlarge) |
Description |
Initial Quantity Available |
Price $ US |
Ordering Link |
| 50P-1160LCD |  |
Field Service Kit - replacement LCD screen and touchpad overlay, plug n play installation, for GE Zenith MX-150 controller | unlimited | $365 | |
| 50P-1161LCD | |
Field Service Kit - replacement LCD screen and touchpad overlay, plug n play installation, for GE Zenith MX-250 controller | unlimited | $365 | |
| L-3078 |  |
Limit switch - used for SCN/SCE and A3/A4 on GE Zenith ZTX switches rated up to 480V. Mounting screws and bracket not included. | unlimited | $48 | |

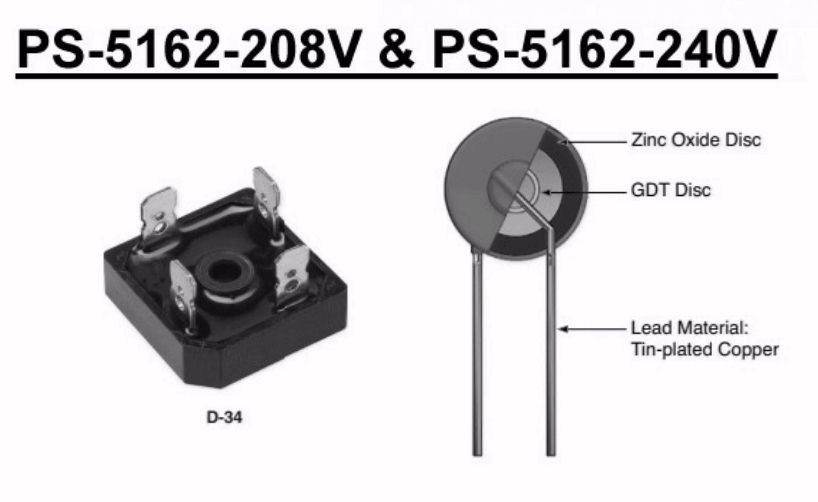

| PS-5162-208V |  |
Rectifier - for select GE Zenith switches, 208V control, includes MOV for user connection | 2 | $53 | |
| PS-5162-240V | |
Rectifier - for select GE Zenith switches, 208V control, includes MOV for user connection | 2 | $53 | |

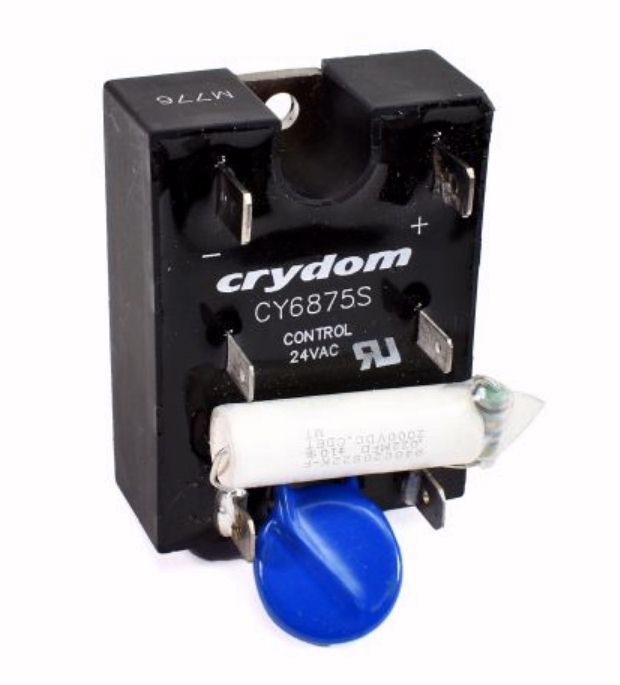

| PS-8903 |  |
SCR-N and SCR-E, 75AMP 600 VOLT, replaces part PS-8896, marked CY6875S with S20 K624 suppressor, resistors. | unlimited | $346 | |
| K-2208 |  |
Solenoid - 208V for Zenith switch | unlimited | $401 | |

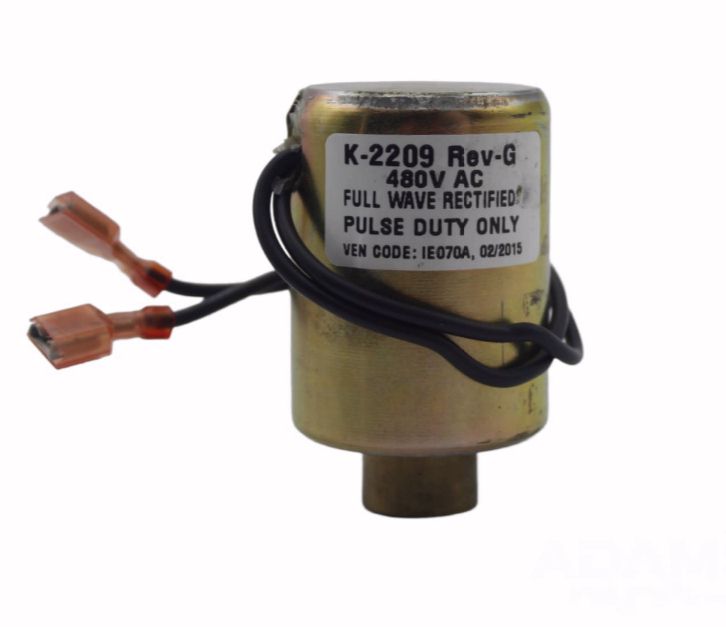

| K-2209 | |
Solenoid - 480V for Zenith switch | unlimited | $401 | |

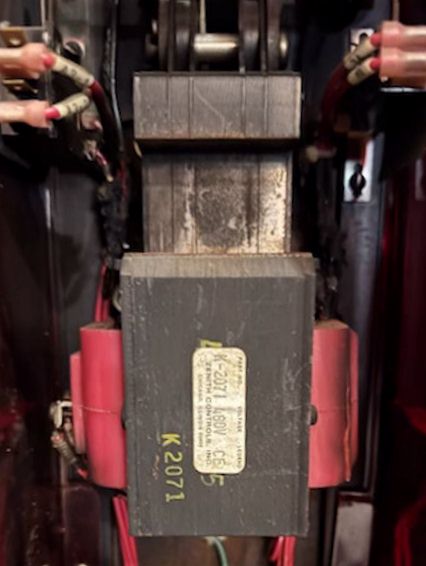

| K-2071F-COIL |  |
Coil - replacement for GE K-2071F solenoid, core 3.53x2.43x2.11h, 4.24 overall, window 2.22x1.17, with #8 screw terminals. COMPARE DIMENSIONS BEFORE ORDERING. | unlimited | $689 | |
| K-2074F-COIL |  |
Coil - replacement for GE K-2074F solenoid, core 3.53x2.43x2.11h, 4.24 overall, window 2.22x1.17, with #8 screw terminals. COMPARE DIMENSIONS BEFORE ORDERING. | unlimited | $739 | |
| K-2094-REWIND |  |
Instructions & Specs - for rewinding GE Zenith solenoid, 480V, 10 pages. | unlimited | $10
free freight |
|

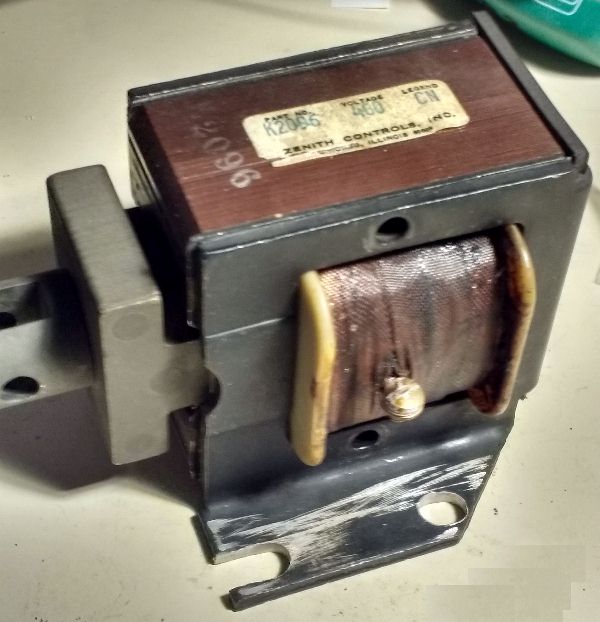

| K-2096-REWIND | |
Instructions & Specs - for repairing & rewinding GE Zenith solenoid, 440V, 10 pages. | unlimited | $10
free freight |
|
| K-2080F-REWIND | |
Instructions & Specs - for repairing & rewinding GE Zenith solenoid, 380/416V, 10 pages. | unlimited | $10
free freight |
|
| K-2092F-REWIND | |
Instructions & Specs - for repairing & rewinding GE Zenith solenoid, 240V, 10 pages. | unlimited | $10
free freight |
|
| K-2091F-REWIND | |
Instructions & Specs - for repairing & rewinding GE Zenith solenoid, 208V, 10 pages. | unlimited | $10
free freight |
|
| COIL-REWIND | |
Instructions - for repairing & rewinding GE Zenith solenoid coils. Scope only covers open style coils, 21 pages. | unlimited | $15
free freight |
IMPORTANT NOTES
The most common replacement parts for GE Zenith automatic transfer switches are searchable above. Contact us if you do not see what you need.
Include serial number and ratings of your switch with inquiries and when ordering controllers that need factory programming.
FACTORY TERMS: After parts are energized they cannot be returned for refund. In the unlikely event a part is received defective it will be exchanged. Replacement parts come with a 90 day warranty. Click here for complete GE warranty information.
Click here for GE Zenith Replacement Parts List.
Click here for short list of frequently ordered parts.
Be sure to order the correct controller as they are not returnable.
