NEW PRODUCT
(now shipping June 2025)


Click thumbnail image above to enlarge

Universal Replacement Contactor
for
Automatic Transfer Switches
240 Vac, 2 pole, single phase, 200A max
(field installable with instructions)

Replacement power contactor for residential and light commercial automatic transfer switches. Similar construction and same ratings as OEM equipment for many brands. Dual operating coils for the two positions (normal utility and emergency generator).

Now you do not have to completely change out a whole transfer switch and enclosure simply because the original manufacturer will no longer sell a replacement for a non-working contactor. Or, the lead time for an original replacement is unacceptably long or priced too high. Save time and money by keeping the original enclosure, and all the conduit connections and cables. Just replace the power contactor.

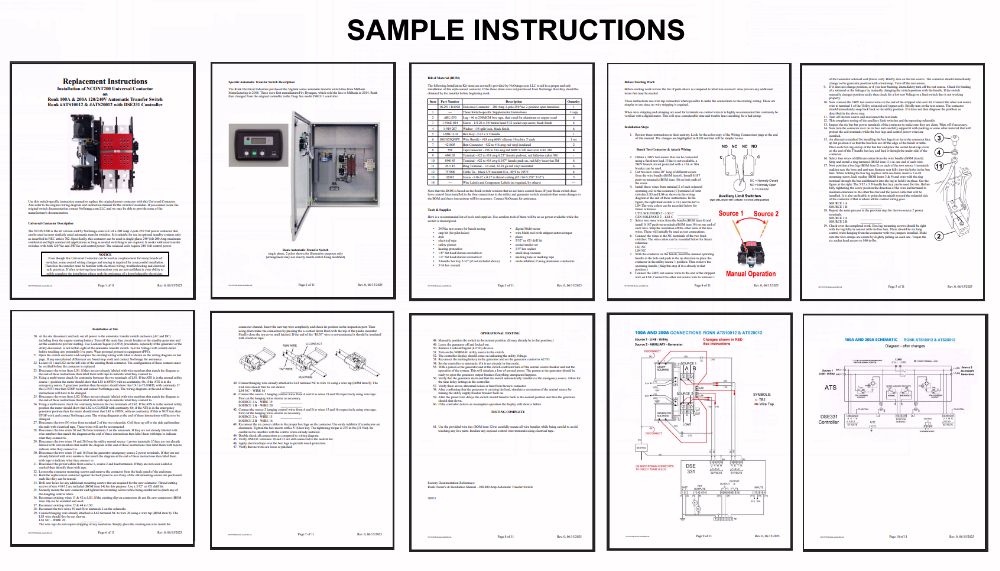

Instructions provided. In some cases this is a direct replacement with no other changes necessary. In other cases some control wiring changes will need to be made, which are described in the instructions. When wiring changes are necessary we include the terminals, butt splices and wire tap connectors to make the work as simple as possible.

FEATURES

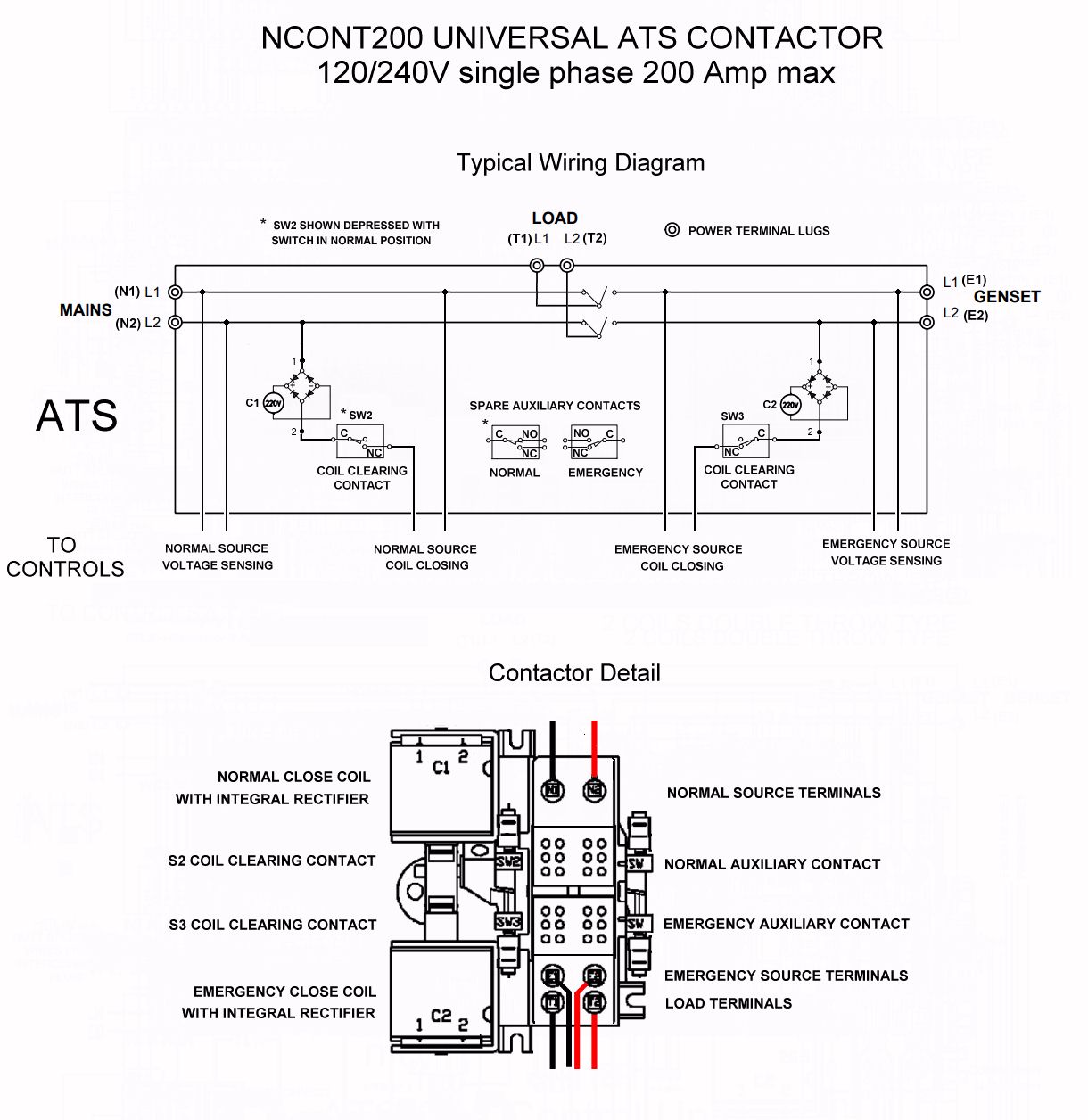

200 Amp max rating 2 power poles 250 VAC Compact size dual operating coils for the two positions operating handle for manual backup operation (2) SPST (NC) limit switches for coil circuit (2) SPDT (form C) spare auxiliary contacts

lugs and hardware for power cables (optional) control wire terminals, butt splices, taps (when required) jumpers for connecting to service disconnect (optional) detailed installation instructions conversion for different coil Voltages (when required)

FOLLOWING ATS CONTACTORS CAN USUALLY BE REPLACED

BRAND	CURRENT RATINGS	MODELS	REMARKS
Briggs & Stratton	100A, 150A, 200A	----	has control board, 200A lugs can be reused
Centurion	100A	----
Cummins	100A, 200A	RSZ series *
Cutler-Hammer	100A, 150A, 200A	RLCM and RLC1 series *	we include coil Voltage conversion
Eaton	100A, 150A, 200A	RLCM and RLC1 series *	we include coil Voltage conversion
Generac	100A, 150A, 200A	RXS series, and earlier	has SACM, or TR, 200A lugs can be reused
General Electric	40A, 80A, 100A, 150A, 200A	ZTX series *
Honeywell	100A, 150A, 200A	RXS series	200A lugs can be reused
Kohler	100A, 200A	RDT series *	we include coil Voltage conversion
Onan	100A, 200A	RSZ series *
Ronk	100A, 200A	ATS10012, ATS20012 *	we include coil Voltage conversion
Thomson	200A max	TS910, TS920 series *	we include coil Voltage conversion
Zenith	40A, 80A, 100A, 150A, 200A	ZTX series *

* For switches which contain integrated logic controllers, the controller must be in working order.



If your switch is still under warranty we do not recommend replacing the OEM contactor with this alternative as it will probably void the original manufacturer's switch warranty.

Now shipping June 2025



Select replacing brand / model... replacing Briggs Stratton replacing Centurion replacing Cummins RSZ replacing Cutler-Hammer RLCM replacing Cutler-Hammer RLC1 replacing Eaton RLCM replacing Eaton RLC1 replacing GE Zenith ZTX replacing Generac RXS replacing Generac other replacing General Electric ZTX replacing Honeywell RXS replacing Kohler RDT (add $50) replacing Onan RSZ replacing Ronk ATS with DSE331 controller replacing Thomson TS910 replacing Thomson TS920 replacing Zenith ZTX replacing other brand - describe in special instructions on checkout form (add $50)
Select replacing ATS Amps... replacing 40A contactor replacing 80A contactor replacing 100A contactor replacing 150A contactor replacing 200A contactor
Select ATS service disconnect... no service disconnect inside existing ATS enclosure service disconnect inside existing ATS enclosure bussed to contactor (add $50) service disconnect inside existing ATS enclosure cabled to contactor
Select optional lugs... will re-use box lugs and hardware from existing Briggs Stratton, Centurion, Generac, or Honeywell 200A ATS include new box lugs and mounting hardware (add $40)
Select wiring diagram... I have control wiring diagram for existing ATS that I can send by email I do NOT have control wiring diagram for existing ATS
Select certifications... replacement contactor to have equivalent OEM ratings but without certification markings replacement contactor must be certified to UL standard with ETL and/or UR markings (add $370)
Select inspection... this repair WILL be inspected as part of an electrical work permit this repair WILL NOT be inspected as part of an electrical work permit

Item Number: NCONT200
Price: $270
Price last updated 6/18/2025
Shipping Weight: 10 lbs.
This item normally ships in approximately 1-2 weeks or less.



---
